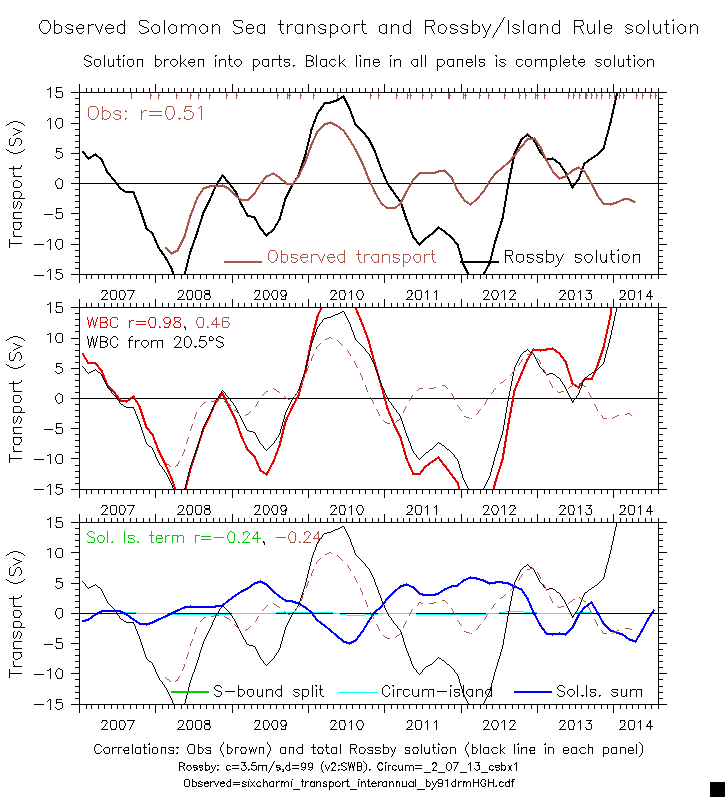

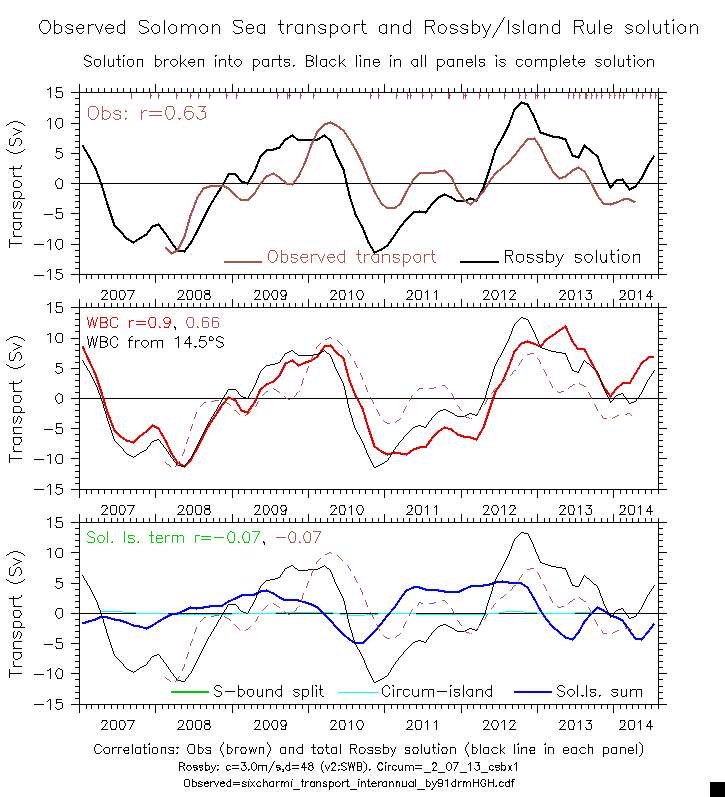

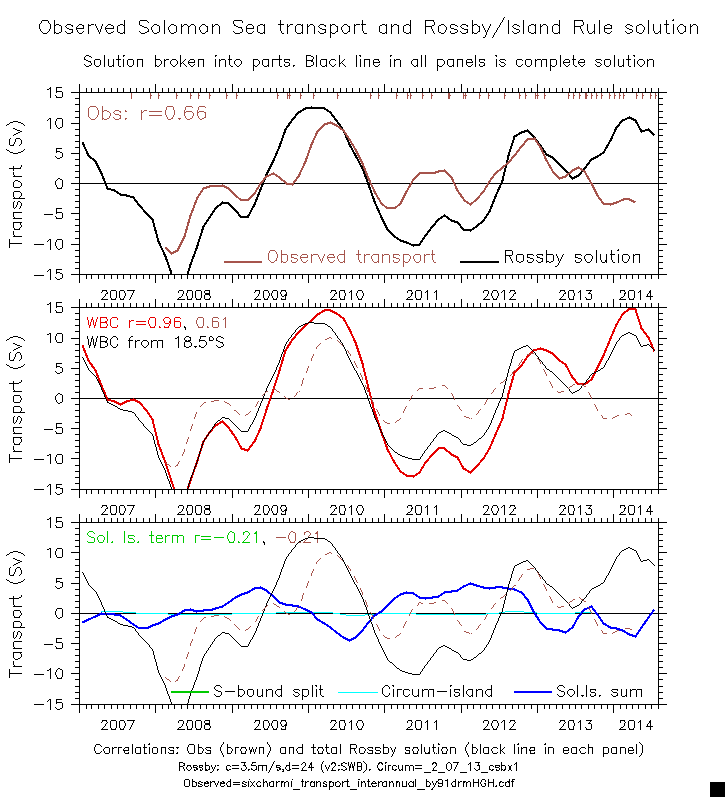

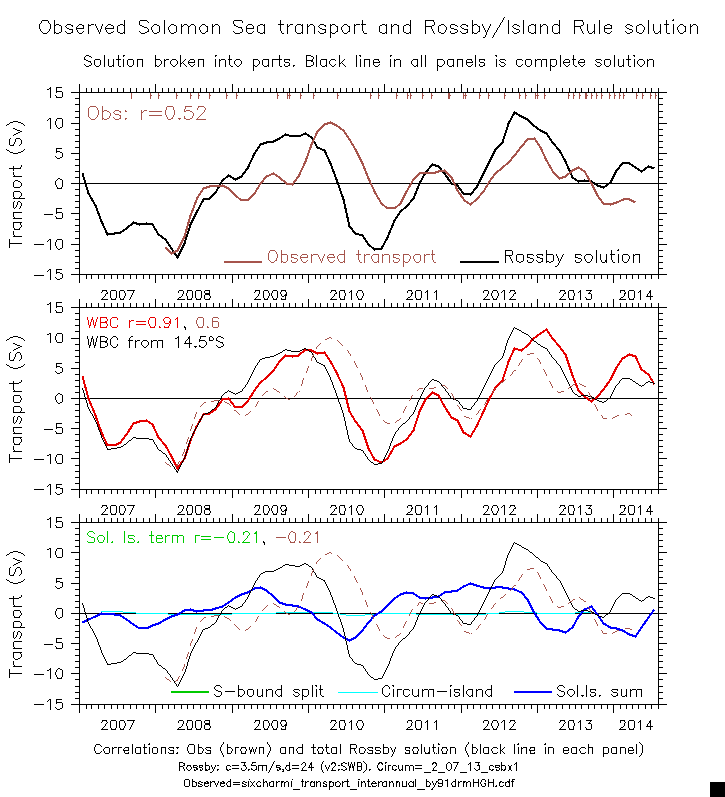

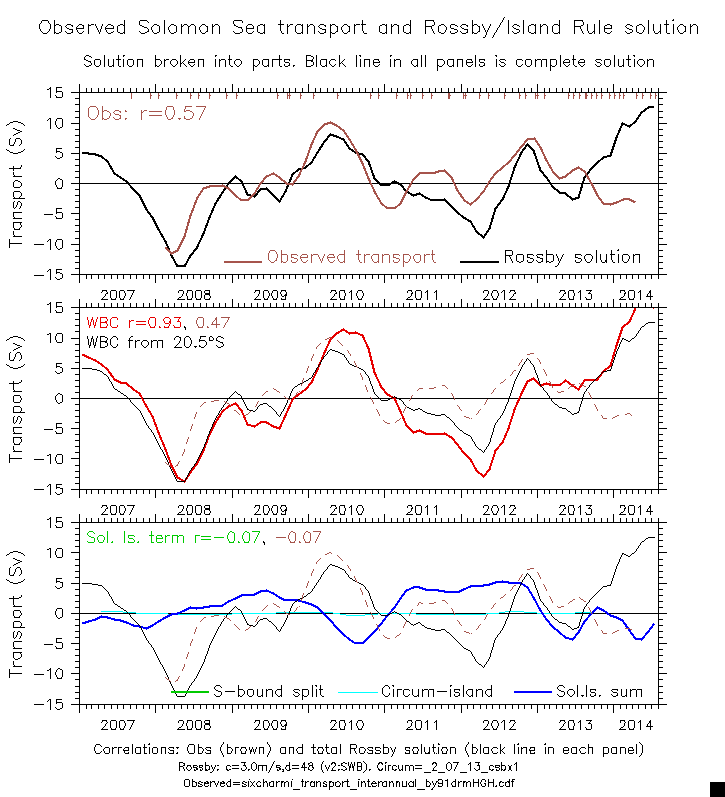

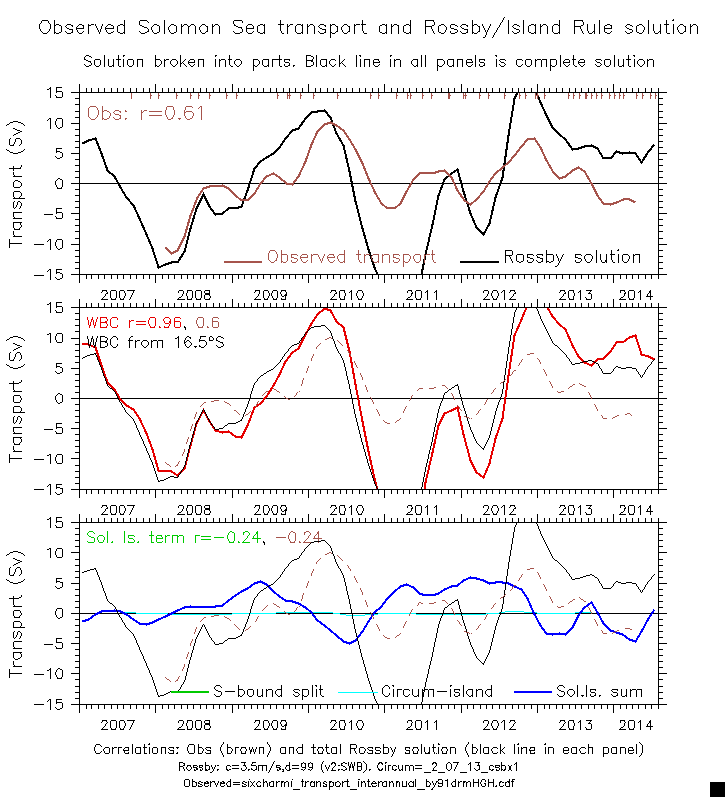

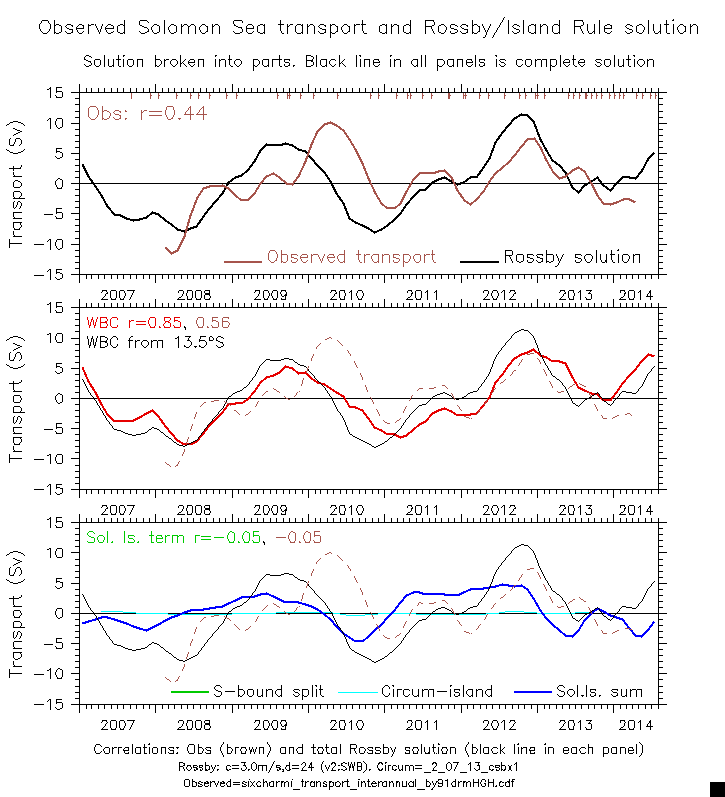

Solomon Sea transport and the Rossby/TDIR solution, by starting latitude

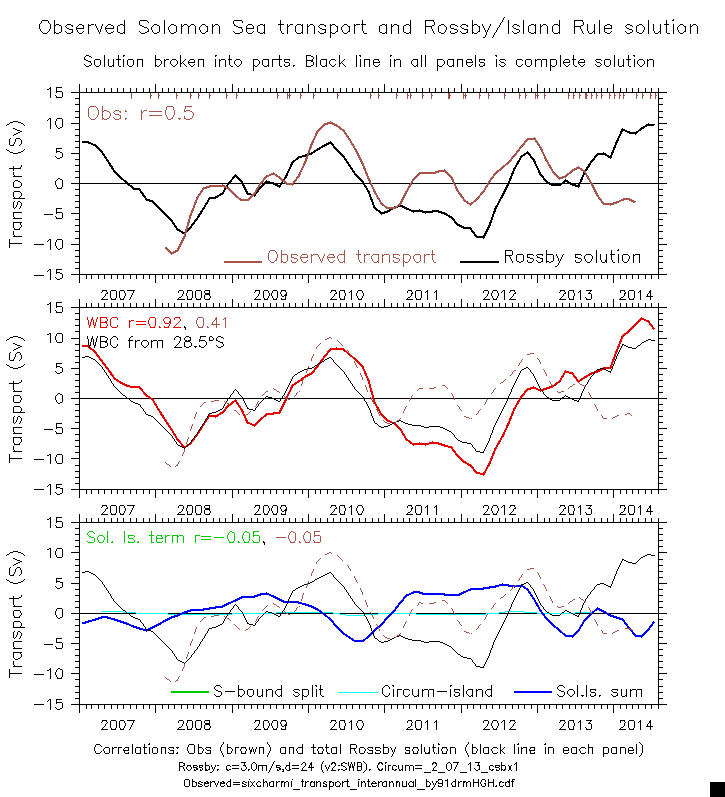

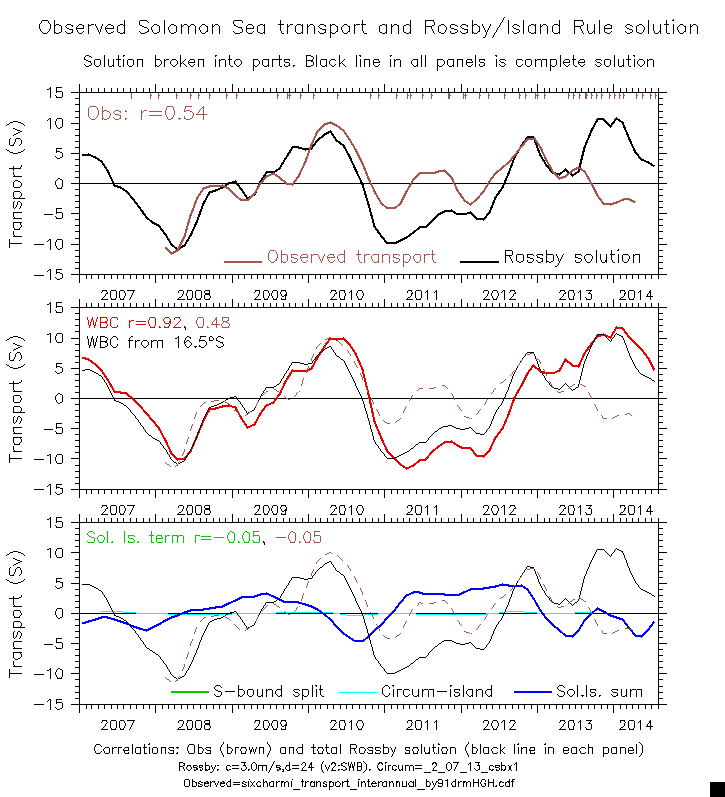

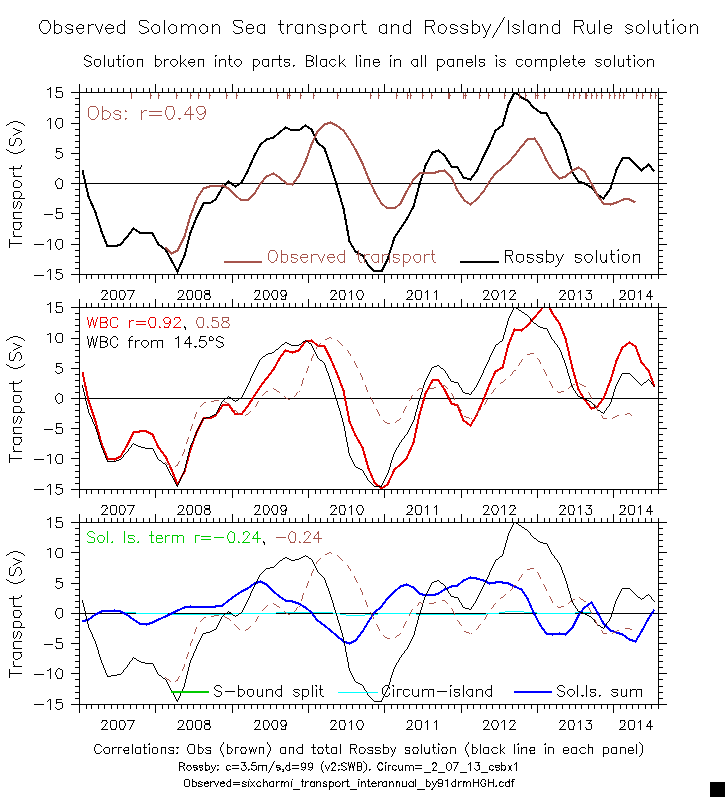

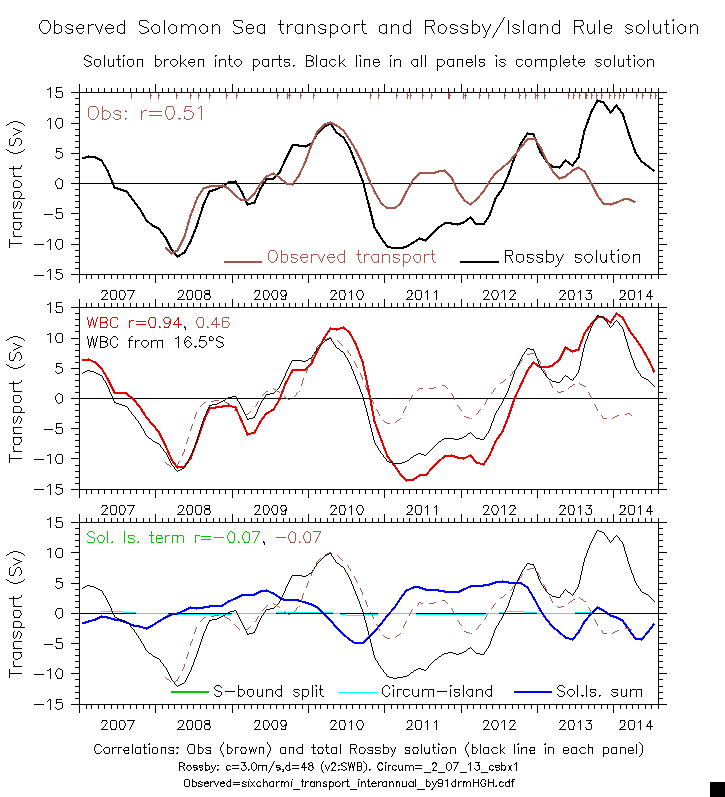

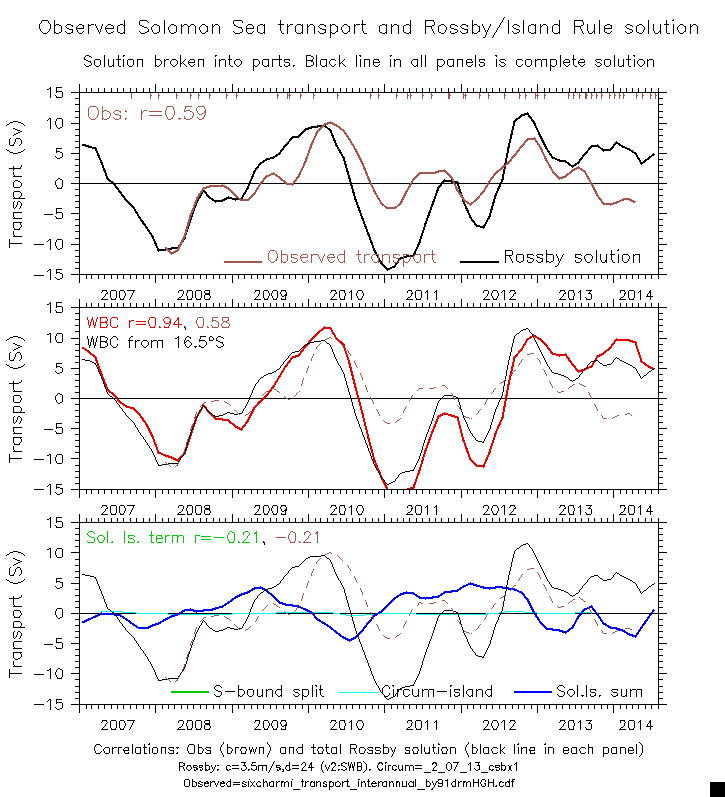

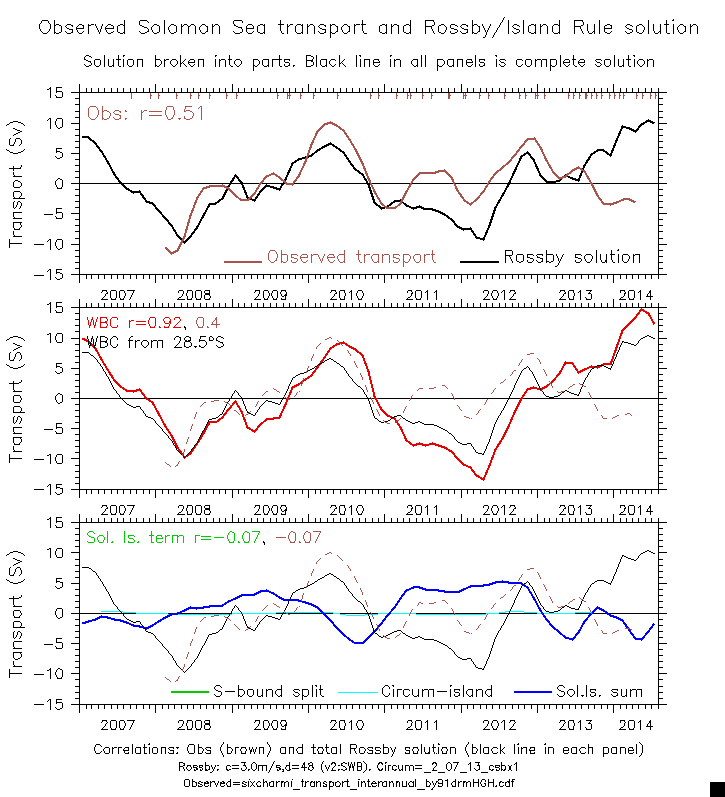

Solutions for the Rossby/TDIR Solomon Sea transport for different latitudes of zero southern boundary on the coast of Australia.

This affects the WBC part of the solution only (middle panel), and sum/total (top panel)

Label in left of middle panel ("WBC from ...") shows starting latitude. Within each group, solutions include successively southward latitudes.

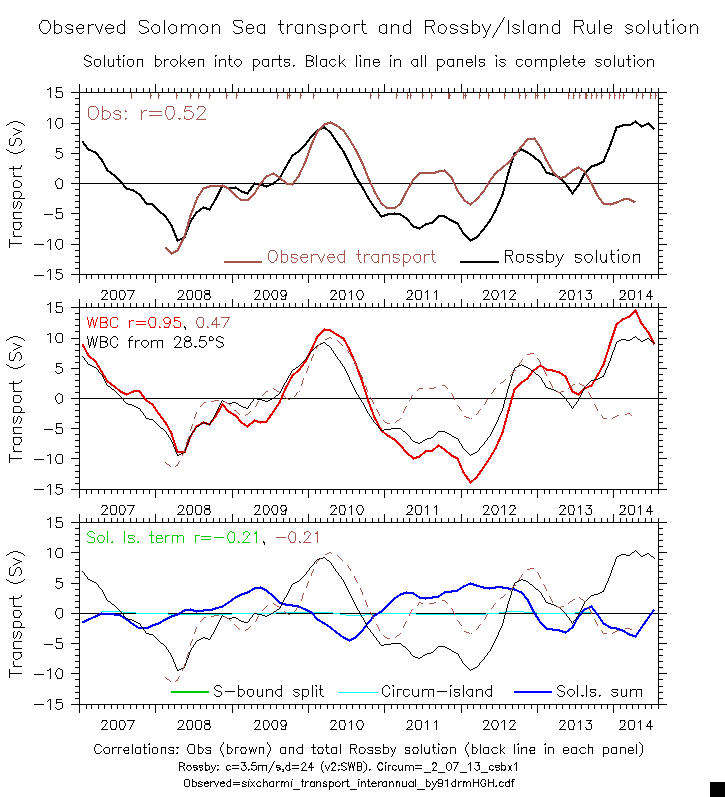

Final one (28.5°S) is the "complete" solution.

There are 4 groups of solutions:



c=3.0m/s, damping=24 months


c=3.5m/s, damping=24 months


c=3.0m/s, damping=48 months


c=3.5m/s, No damping
